NavigationEuro Jaw Crusher
Crushing capacity: 85-650t/h
Feeding size: 500-800mm
Processible materials: Limestone, granite, sandstone, construction waste,etc.

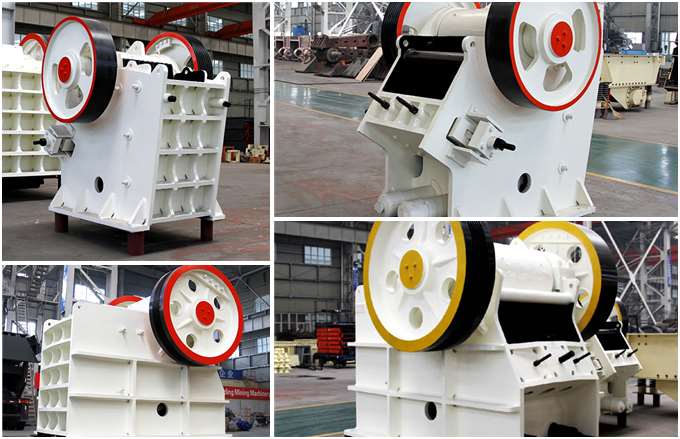

Brief introduction to Euro jaw crusher
Euro jaw crusher is the upgrade of jaw crusher, sually for coarse or secondary crushing. European type jaw crusher is suitable to crush ores and rocks with medium hardness in industries like metallurgy, mining, chemical engineering, construction and ceramic, etc.
Unique advantages of Euro jaw crusher
1. Fote Euro jaw crushers are made with the world-level technical process and raw materials.
2. The movable jaw assembly is made with the high-quality cast steel and heavy eccentric shaft with the large forging stock. All these ensure the reliable working of Euro jaw crusher.
3. We install Euro jaw crusher with the bigger and more wearable eccentric shaft bearings, which can prolong the service lives of jaw crusher and bearing parts.
4. The toothed plate we use can widen the effective length of jaw plate and increase the output of Euro jaw crusher.
European type jaw crusher plant
European type jaw crusher plant integrates feeding, crushing, delivering and other technical processes, with wide application ranges from rock crushing, aggregate production to open-pit mining. European type jaw crusher can meet different demands of various users, so it’s more and more welcomed by customers.
If you need our jaw crushers or other products, please leave your messages on our website or Email to vip@sinoftm.com. We will contact with you as soon as possible. Thank you very much.
Technical Data
|
Model
|
Feed opening
(mm） |
Max.feeding
size (mm) |
Adjusting range
of discharge opening (mm) |
Processing capacity
(t/h) |
Rotation speed of
eccentric shaft (r/min) |
Motor power
(kw) |
Dimensions
（L×W×H） (mm) |
| PE-150×250 | 150×250 | 125 | 10-40 | 1-3 | 250 | 4P 5.5 | 720×660×850 |
| PE-200×300 | 200×300 | 180 | 15-50 | 2-6 | 260 | 4P 7.5 | 910×750×990 |
| PE-200×350 | 200×350 | 180 | 18-70 | 3-10 | 260 | 4P 11 | 1000×870×990 |
| PE-250×400 | 250×400 | 210 | 20-60 | 5-21 | 300 | 6P 15 | 1300×1090×1270 |
| PE-400×600 | 400×600 | 340 | 40-100 | 16-64 | 275 | 6P 30 | 1730×1730×1630 |
| PE-500×750 | 500×750 | 425 | 50-100 | 40-110 | 275 | 6P 55 | 1980×2080×1870 |
| PE-600×750 | 600×750 | 500 | 150-200 | 80-240 | 275 | 6P 55 | 2070×2000×1920 |
| PE-600×900 | 600×900 | 500 | 65-160 | 50-160 | 250 | 6P 55 | 2190×2206×2300 |
| PE-750×1060 | 750×1060 | 630 | 80-140 | 110-320 | 250 | 8P 110 | 2660×2430×2800 |
| PE-900×1200 | 900×1200 | 750 | 95-165 | 220-380 | 200 | 8P 110 | 3380×2870×3330 |
| PE-1200×1500 | 1200×1500 | 1020 | 150-350 | 400-800 | 180 | 6P 160-220 | 4200×3300×3500 |
| PE-1500×1800 | 1500×1800 | 1200 | 220-350 | 500-1000 | 180 | 8P 280-355 | 5160×3660×4248 |
| PEX-150×750 | 150×750 | 120 | 18-48 | 8-25 | 320 | 4P 15 | 1200×1530×1060 |
| PEX-250×750 | 250×750 | 210 | 25-60 | 13-35 | 330 | 6P 22 | 1380×1750×1540 |
| PEX-250×1000 | 250×1000 | 210 | 25-60 | 16-52 | 330 | 6P 30 | 1560×1950×1390 |
| PEX-250×1200 | 250×1200 | 210 | 25-60 | 20-61 | 330 | 6P 37 | 2140×1660×1500 |
| PEX-300×1300 | 300×1300 | 250 | 20-90 | 16-105 | 300 | 6P 55 | 2720×1950×1600 |
